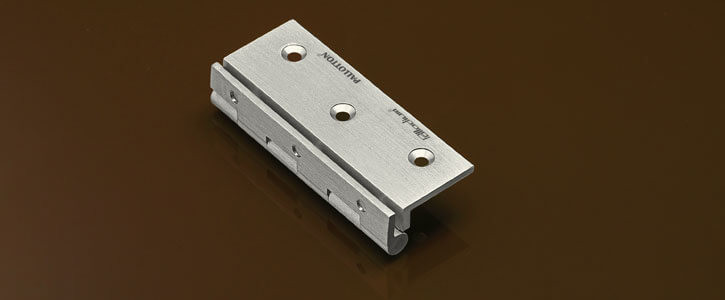

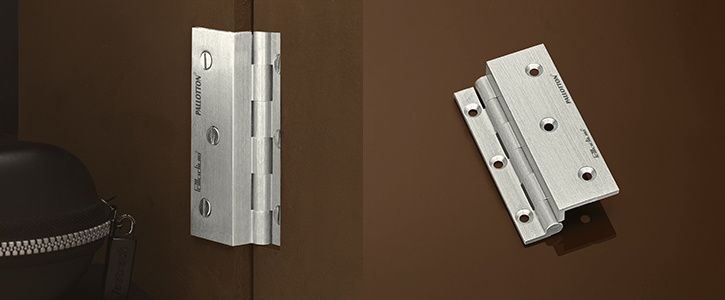

Z hinges

Finish available: lacquer | antique | matt | steel | z black & two tone | graphite black & two tone | matt black | PVD

Banner
  • z hinges
  • z hinges

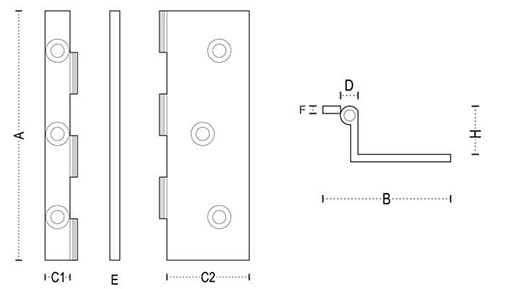

Z hinges diagram: design code | 138

z-hinges-diagram

Z hinges Size Chart: dimensions in mm | 138

CODE
NO
SIZE
M.M.
A
LENGHT
B
W/OPEN
C1
WIDTH
C2
WIDTH
D
BUTT DIA
E
PIN DIA
F
THICKNESS
G
C.S.K DIA
H
HEIGHT
SIZE OF
SCREW
NO. OF
HOLES
138 75 x 9 x 9 75 38 9 25 7 4 2.5 8 16 20 X 5 6
100 x 9 x 9 100 38 9 25 7 4 2.5 8 16 20 X 5 8
75 x 12 x 12 75 42 12 25 7 4 2.5 8 19 20 X 5 6
100 x 12 x 12 100 42 12 25 7 4 2.5 8 19 20 X 5 8
75 x 16 x 16 75 44 16 25 7 4 2.5 8 23 20 X 5 6
100 x 16 x 16 100 44 16 25 7 4 2.5 8 23 20 X 5 8
75 x 19 x 19 75 48 19 25 7 4 2.5 8 26 20 X 5 6
100 x 19 x 19 100 48 19 25 7 4 2.5 8 26 20 X 5 8

*Palladium Products reserves the right to change the size & specification of it's products without prior notice.
